Debugging GraphQL server issues

The GraphQL server is an API middle layer, running on it's own port specified by GRAPHQL_PORT, to retrieve and show the data in the UI. It can also be used to retrieve data for custom third party integarions. Check the API documentation for details.

The most common issue is that the GraphQL server doesn't start properly, usually due to a port conflict. If you are running multiple NetAlertX instances, make sure to use unique ports by changing the GRAPHQL_PORT setting. The default is 20212.

How to update the GRAPHQL_PORT in case of issues

As a first troubleshooting step try changing the default GRAPHQL_PORT setting. Please remember NetAlertX is running on the host so any application uising the same port will cause issues.

Updating the setting via the Settings UI

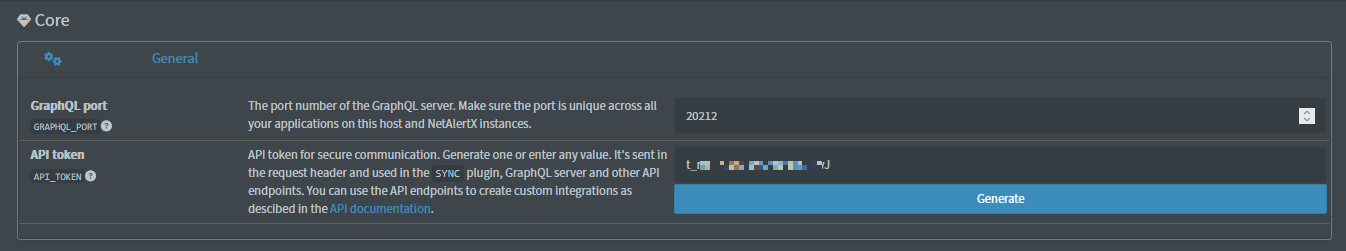

Ideally use the Settings UI to update the setting under General -> Core -> GraphQL port:

GrapQL settings

You might need to temporarily stop other applications or NetAlertX instances causing conflicts to update the setting. The API_TOKEN is used to authenticate any API calls, including GraphQL requests.

Updating the app.conf file

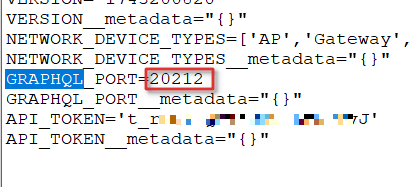

If the UI is not accessible, you can directly edit the app.conf file in your /config folder:

Editing app.conf

Using a docker variable

All application settings can also be initialized via the APP_CONF_OVERRIDE docker env variable.

...
 environment:
      - TZ=Europe/Berlin
      - PORT=20213
      - APP_CONF_OVERRIDE={"GRAPHQL_PORT":"20214"}
...

How to check the GraphQL server is running?

There are several ways to check if the GraphQL server is running.

Init Check

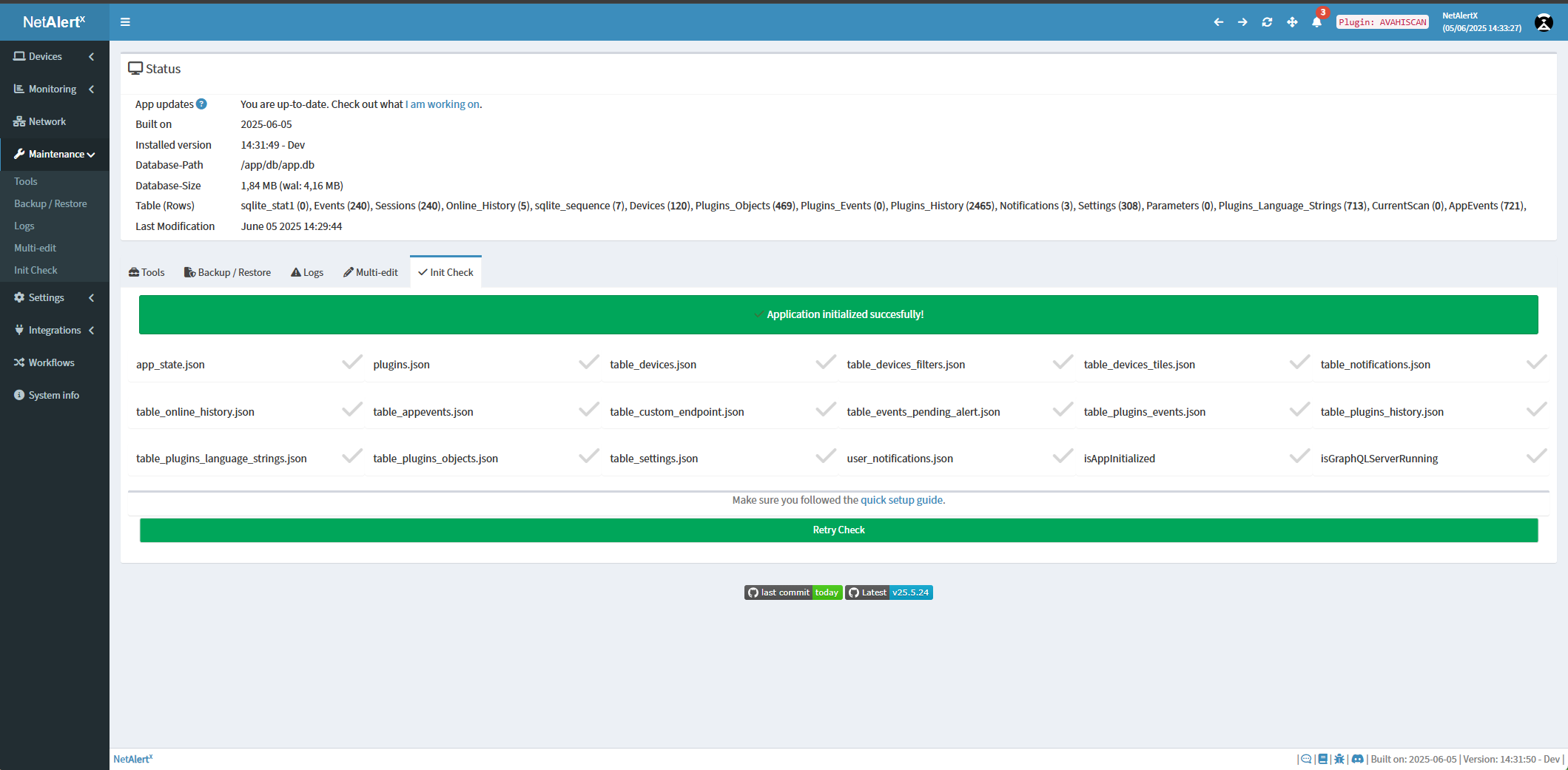

You can navigate to Maintenance -> Init Check to see if isGraphQLServerRunning is ticked:

Init Check

Checking the Logs

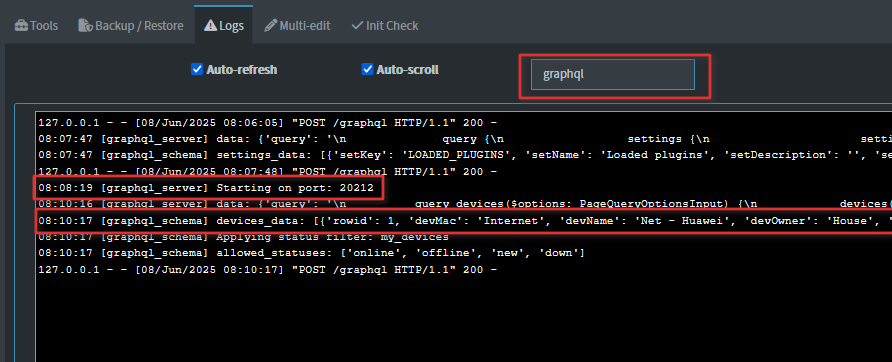

You can navigate to Maintenance -> Logs and search for graphql to see if it started correctly and serving requests:

GraphQL Logs

Inspecting the Browser console

In your browser open the dev console (usually F12) and navigate to the Network tab where you can filter GraphQL requests (e.g., reload the Devices page).

Browser Network Tab

You can then inspect any of the POST requests by opening them in a new tab.

Browser GraphQL Json
