Troubleshooting: Devices Show Offline When They Are Online

In some network setups, certain devices may intermittently appear as offline in NetAlertX, even though they are connected and responsive. This issue is often more noticeable with devices that have higher IP addresses within the subnet.

Note

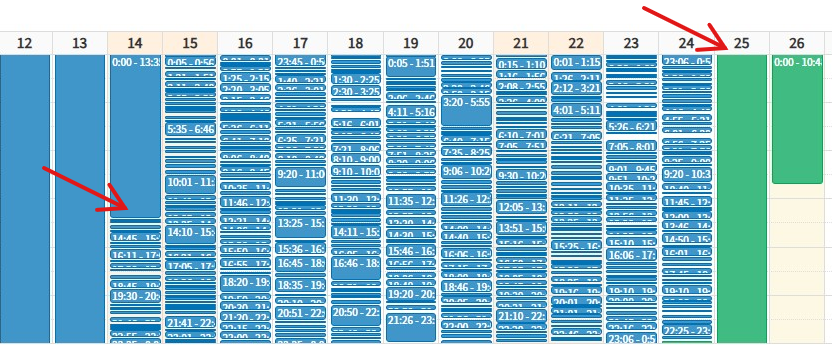

Network presence graph showing increased drop outs before enabling additional ICMP scans and continuous online presence after following this guide. This graph shows a sudden spike in drop outs probably caused by a device software update. before after presence

Symptoms

  • Devices sporadically show as offline in the presence timeline.
  • This behavior often affects devices with higher IPs (e.g., 192.168.1.240+).
  • Presence data appears inconsistent or unreliable despite the device being online.

Cause

This issue is typically related to scanning limitations:

  • ARP scan timeouts may prevent full subnet coverage.

  • Sole reliance on ARP can result in missed detections:

  • Some devices (like iPhones) suppress or reject frequent ARP requests.

  • ARP responses may be blocked or delayed due to power-saving features or OS behavior.

  • Scanning frequency conflicts, where devices ignore repeated scans within a short period.

To improve presence accuracy and reduce false offline states:

✅ Increase ARP Scan Timeout

Extend the ARP scanner timeout to ensure full subnet coverage:

ARPSCAN_RUN_TIMEOUT=360

Adjust based on your network size and device count.

✅ Add ICMP (Ping) Scanning

Enable the ICMP scan plugin to complement ARP detection. ICMP is often more reliable for detecting active hosts, especially when ARP fails.

✅ Use Multiple Detection Methods

A combined approach greatly improves detection robustness:

  • ARPSCAN (default)
  • ICMP (ping)
  • NMAPDEV (nmamp)

This hybrid strategy increases reliability, especially for down detection and alerting. See other plugins that might be compatible with your setup. See benefits and drawbacks of individual scan methods in their respective docs.

Results

After increasing the ARP timeout and adding ICMP scanning (on select IP ranges), users typically report:

  • More consistent presence graphs
  • Fewer false offline events
  • Better coverage across all IP ranges

Summary

Setting Recommendation
ARPSCAN_RUN_TIMEOUT Increase to ensure scans reach all IPs
ICMP Scan Enable to detect devices ARP might miss
Multi-method Scanning Use a mix of ARP, ICMP, and NMAP-based methods

Tip: Each environment is unique. Consider fine-tuning scan settings based on your network size, device behavior, and desired detection accuracy.

Let us know in the NetAlertX Discussions if you have further feedback or edge cases.

See also Remote Networks for more advanced setups.
