Workflows Overview

The workflows module in NetAlertX allows to automate repetitive tasks, making network management more efficient. Whether you need to assign newly discovered devices to a specific Network Node, auto-group devices from a given vendor, unarchive a device if detected online, or automatically delete devices, this module provides the flexibility to tailor the automations to your needs.

Workflows diagram

Below are a few examples that demonstrate how this module can be used to simplify network management tasks.

Updating Workflows

Note

In order to apply a workflow change, you must first Save the changes and then reload the application by clicking Restart server.

Workflow components

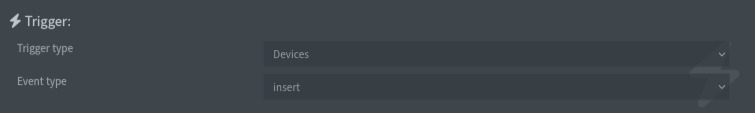

Triggers

Triggers define the event that activates a workflow. They monitor changes to objects within the system, such as updates to devices or the insertion of new entries. When the specified event occurs, the workflow is executed.

Example Trigger:

  • Object Type: Devices
  • Event Type: update

This trigger will activate when a Device object is updated.

Conditions

Conditions example

Conditions determine whether a workflow should proceed based on certain criteria. These criteria can be set for specific fields, such as whether a device is from a certain vendor, or whether it is new or archived. You can combine conditions using logical operators (AND, OR).

Tip

To better understand how to use specific Device fields, please read through the Database overview guide.

Example Condition:

  • Logic: AND
  • Field: devVendor
  • Operator: contains (case in-sensitive)
  • Value: Google

This condition checks if the device's vendor is Google. The workflow will only proceed if the condition is true.

Actions

Actions example

Actions define the tasks that the workflow will perform once the conditions are met. Actions can include updating fields or deleting devices.

You can include multiple actions that should execute once the conditions are met.

Example Action:

  • Action Type: update_field
  • Field: devIsNew
  • Value: 0

This action updates the devIsNew field to 0, marking the device as no longer new.

Examples

Below you can find a couple of configuration examples.

Workflow example

Example 1: Assign Device to Network Node Based on IP

This workflow assigns newly added devices with IP addresses in the 192.168.1.* range to the device with the MAC address 6c:6d:6d:6c:6c:6c.

Trigger:

  • Object Type: Devices
  • Event Type: insert

Conditions:

  • Logic: AND
  • Field: devLastIP
  • Operator: contains
  • Value: 192.168.1.

This condition ensures that the workflow only applies to devices with an IP address in the 192.168.1.* range.

Actions:

  • Action Type: update_field
  • Field: devNetworkNode
  • Value: 6c:6d:6d:6c:6c:6c

Example 2: Mark Device as Not New and Delete If from Google Vendor

This workflow automates the process of marking Google devices as not new and deleting them if they meet the criteria.

Trigger:

  • Object Type: Devices
  • Event Type: update

Conditions:

  • Logic: AND
  • Field: devVendor
  • Operator: contains
  • Value: Google

This condition checks if the device's vendor is Google.

  • Logic: AND
  • Field: devIsNew
  • Operator: equals
  • Value: 1

This ensures the workflow applies only to new devices.

Actions:

  1. Action Type: update_field
  2. Field: devIsNew
  3. Value: 0

This action marks the device as no longer new.

  1. Action Type: delete_device

This action deletes the device after it is marked as not new.

Tip

Share your workflows in Discord or GitHub Discussions.
