Workflows debugging and troubleshooting

Tip

Before troubleshooting, please ensure you have Debugging enabled.

Workflows are triggered by various events. These events are captured and listed in the Integrations -> App Events section of the application.

Troubleshooting triggers

Note

Workflow events are processed once every 5 seconds. However, if a scan or other background tasks are running, this can cause a delay up to a few minutes.

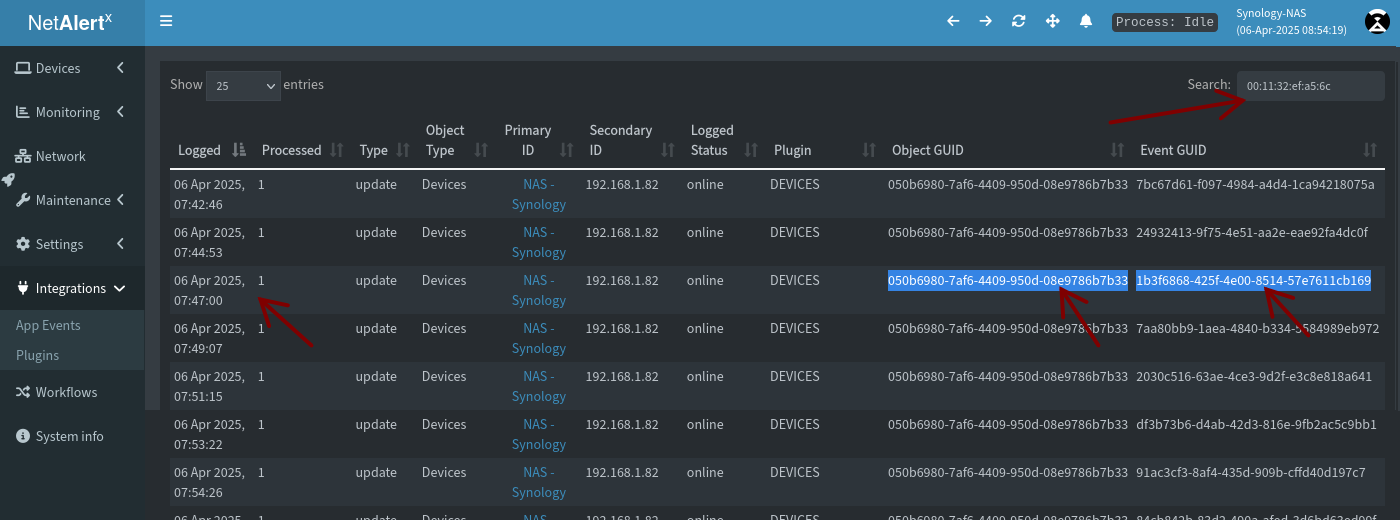

If an event doesn't trigger a workflow as expected, check the App Events section for the event. You can filter these by the ID of the device (devMAC or devGUID).

Once you find the Event Guid and Object GUID, use them to find relevant debug entries.

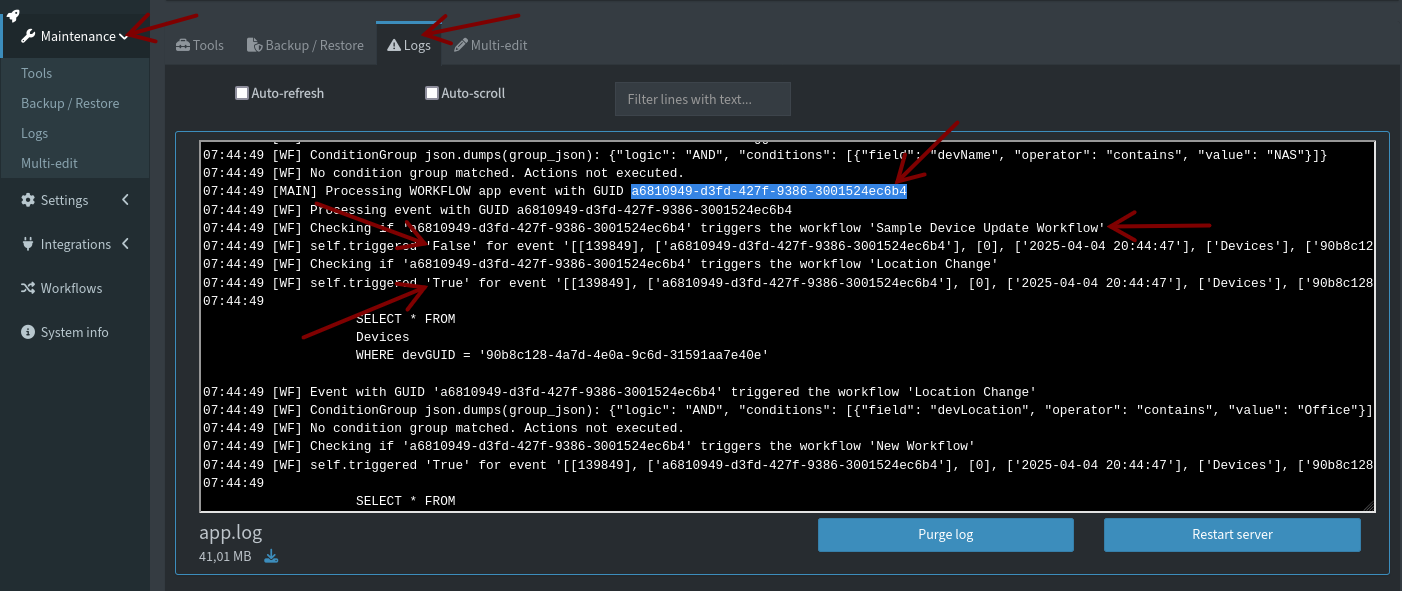

Navigate to Mainetenace -> Logs where you can filter the logs based on the Event or Object GUID.

Below you can find some example app.log entries that will help you understand why a Workflow was or was not triggered.

16:27:03 [WF] Checking if '13f0ce26-1835-4c48-ae03-cdaf38f328fe' triggers the workflow 'Sample Device Update Workflow'
16:27:03 [WF] self.triggered 'False' for event '[[155], ['13f0ce26-1835-4c48-ae03-cdaf38f328fe'], [0], ['2025-04-02 05:26:56'], ['Devices'], ['050b6980-7af6-4409-950d-08e9786b7b33'], ['DEVICES'], ['00:11:32:ef:a5:6c'], ['192.168.1.82'], ['050b6980-7af6-4409-950d-08e9786b7b33'], [None], [0], [0], ['devPresentLastScan'], ['online'], ['update'], [None], [None], [None], [None]] and trigger {"object_type": "Devices", "event_type": "insert"}'
16:27:03 [WF] Checking if '13f0ce26-1835-4c48-ae03-cdaf38f328fe' triggers the workflow 'Location Change'
16:27:03 [WF] self.triggered 'True' for event '[[155], ['13f0ce26-1835-4c48-ae03-cdaf38f328fe'], [0], ['2025-04-02 05:26:56'], ['Devices'], ['050b6980-7af6-4409-950d-08e9786b7b33'], ['DEVICES'], ['00:11:32:ef:a5:6c'], ['192.168.1.82'], ['050b6980-7af6-4409-950d-08e9786b7b33'], [None], [0], [0], ['devPresentLastScan'], ['online'], ['update'], [None], [None], [None], [None]] and trigger {"object_type": "Devices", "event_type": "update"}'
16:27:03 [WF] Event with GUID '13f0ce26-1835-4c48-ae03-cdaf38f328fe' triggered the workflow 'Location Change'

Note how one trigger executed, but the other didn't based on different "event_type" values. One is "event_type": "insert", the other "event_type": "update".

Given the Event is a update event (note ...['online'], ['update'], [None]... in the event structure), the "event_type": "insert" trigger didn't execute.
